UPN

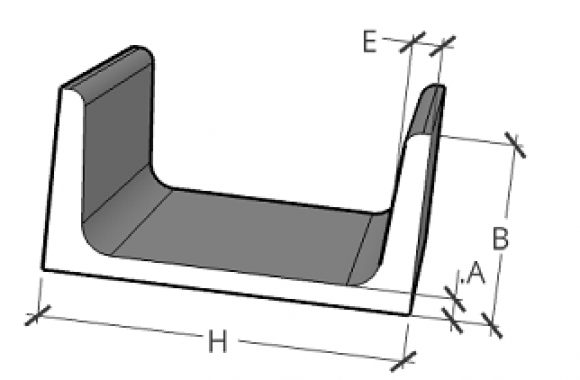

  • Omschrijving Afmeting kg/m
    UPN 40x20x5 mm H:40 B:20 A:5 E:5.5 2.93
    UPN 40x35x5 mm H:40 B:35 A:5 E:7 4.97
    UPN 50x25x5 mm H=50 B:25 A:5 E:6 3.94
    UPN 50x38x5 mm H:50 B:38 A:5 E:7 5.7
    UPN 60x30x6 mm H:60 B:30 A:6 E:6 5.17
    UPN 65x42x5,5 mm H:65 B:42 A:5.5 E:7.5 7.23
    UPN 70x40x6 mm H:70 B:40 A:6 E:6.5 6.9
    UPN 80x45x6 mm H:80 B:45 A:6 E:8 8.9
    UPN 100x50x6 mm - 6,10m H:100 B:50 A:6 E:8.5 10.8
    UPN 120x55x7 mm - 6,10 m H:120 B:55 A:7 E:9 13.7
    UPN 140x60x7 mm - 6,10 m H:140 B:60 A:7 E:10 16.4
    UPN 160x65x7,5 mm - 6,10 m H:160 B:65 A:7.5 E:10.5 19.2
    UPN 180x70x8 mm - 6,10 m H:180 B:70 A:8 E:11 22.5
    UPN 200x75x8,5 mm - 6,10 m H:200 B:75 A:8.5 E:11.5 25.8
    UPN 220x80x9 mm H:220 B:80 A:9 E:12.5 30
    UPN 240x85x9,5 mm H:240 B:85 A:9.5 E:13 33.9
    UPN 260x90x10 mm H:260 B:90 A:10 E:14 38.7
    UPN 300x100x10 mm H:300 B:100 A:10 E:16 47.1
